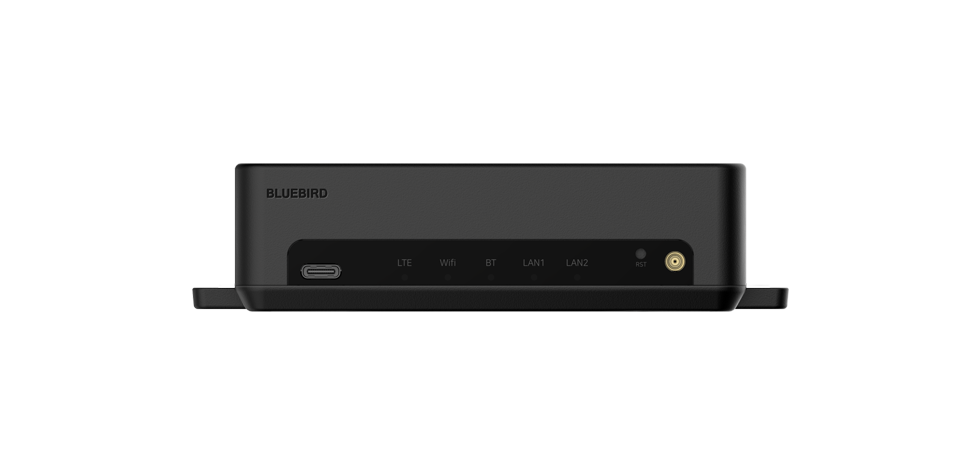

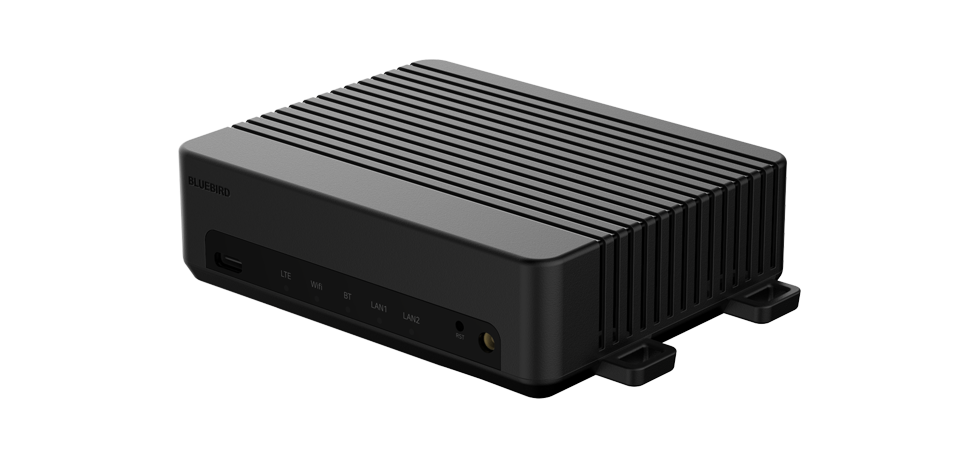

BlueBird AG50 Android Vehicle Gateway – CAN Bus, LTE, Wi-Fi 5, Snapdragon 450
The BlueBird AG50 is an Android 11 vehicle gateway that connects to a vehicle's CAN bus and other interfaces to collect telematics and driving data. It is made for fleet operators, transport and logistics companies building connected-vehicle and tracking solutions. It runs on a Qualcomm Snapdragon 450 octa-core processor with LTE, Wi-Fi and Bluetooth 5.0 connectivity.
Key features
- Vehicle data at source: reads engine, brake, fuel-tank and other data directly from the CAN bus.
- Fits existing setups: CAN, GPIO, RS232, USB and Ethernet interfaces let you add the AG50 without reworking current vehicle systems.
- Accurate tracking: records location, speed, trip distance and time, and engine idling, and starts logging as soon as driving begins, even from indoor or underground parking.
- Driver behaviour insight: a 6-axis sensor captures acceleration, braking and cornering for driving analysis.
- Incident awareness: detects impacts and records events, including while parked.
- Always connected: LTE (Korea or optional worldwide bands), 802.11a/b/g/n/ac Wi-Fi and Bluetooth 5.0 BLE.
- Enterprise platform: Android 11 on Snapdragon 450 with 2 GB RAM and 16 GB flash for your fleet applications.
Specifications
| OS | Android 11 |
|---|---|
| CPU | Qualcomm Snapdragon 450 octa-core 1.8 GHz |
| Memory | 2 GB RAM / 16 GB flash |
| Vehicle interfaces | CAN, GPIO, RS232, USB, Ethernet |
| WPAN | Bluetooth 5.0 BLE |
| WLAN | IEEE 802.11a/b/g/n/ac |
| WWAN, worldwide (optional) | LTE bands 1, 2, 3, 4, 5, 7, 8, 20, 28; WCDMA B1, B2, B4, B5, B8; GSM/EDGE B2, B3, B5, B8 |
| WWAN, Korea | LTE B1, B3, B5, B7, B8 |
| Sensors | 6-axis sensor (driving analysis, impact detection) |
| Power | Batteryless, 12 V DC input |
| Dimensions | 130 x 94.65 x 34.6 mm (5.12 x 3.73 x 1.36 in) |
| Weight | 240 g / 8.5 oz |
Ideal for
Fleet management and telematics, transport and logistics fleets, delivery and distribution vehicles, driver-safety and behaviour programmes, and connected-vehicle platforms that need CAN bus data and GPS tracking.
