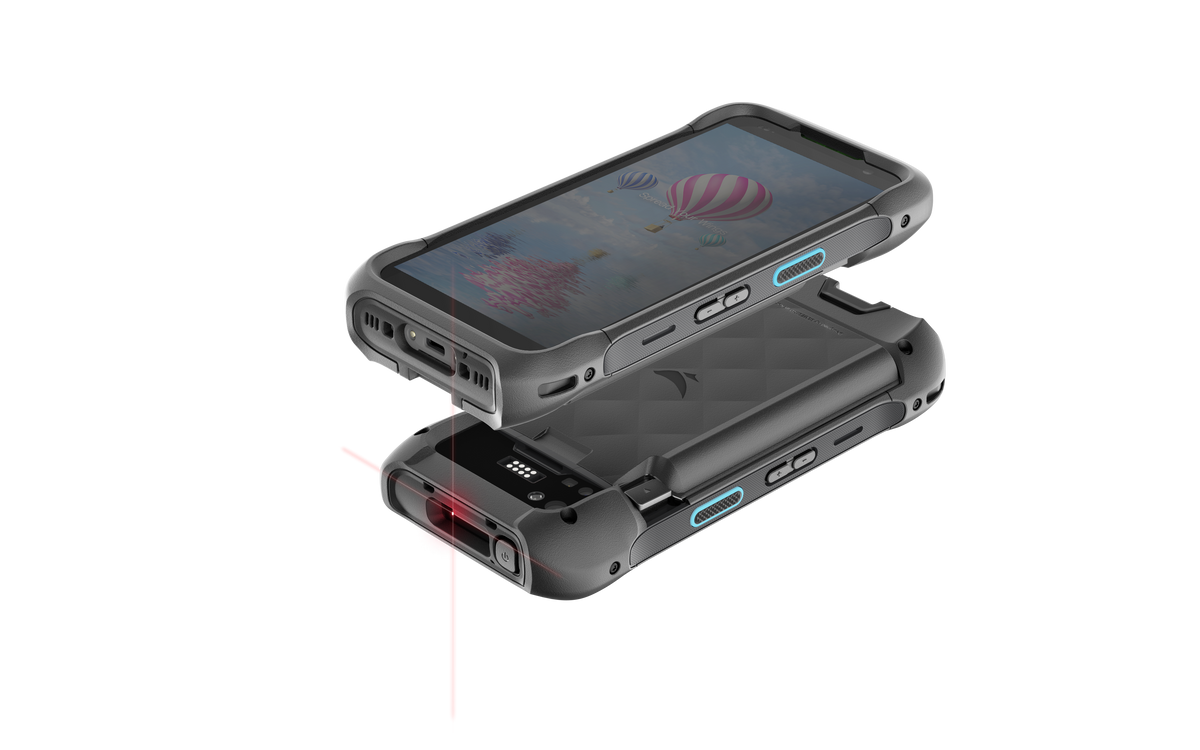

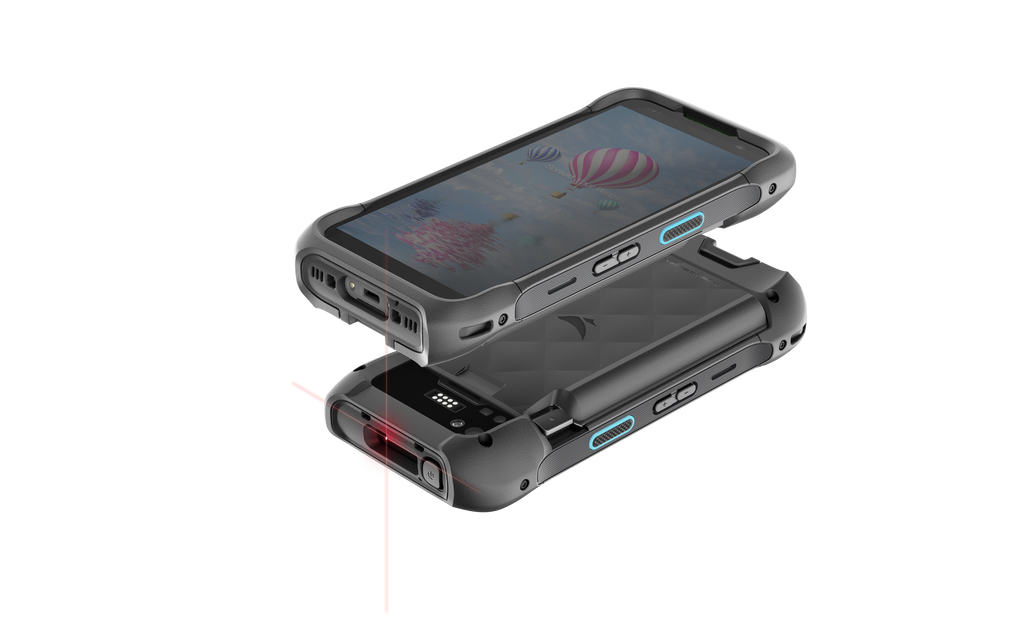

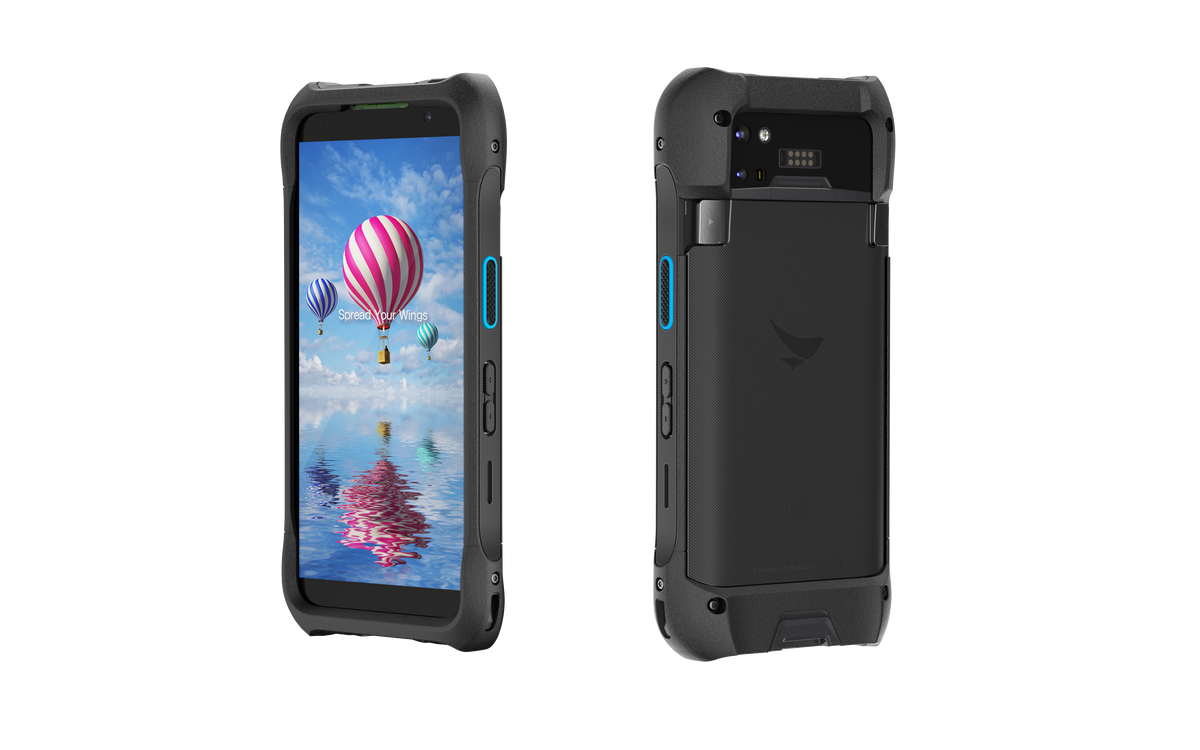

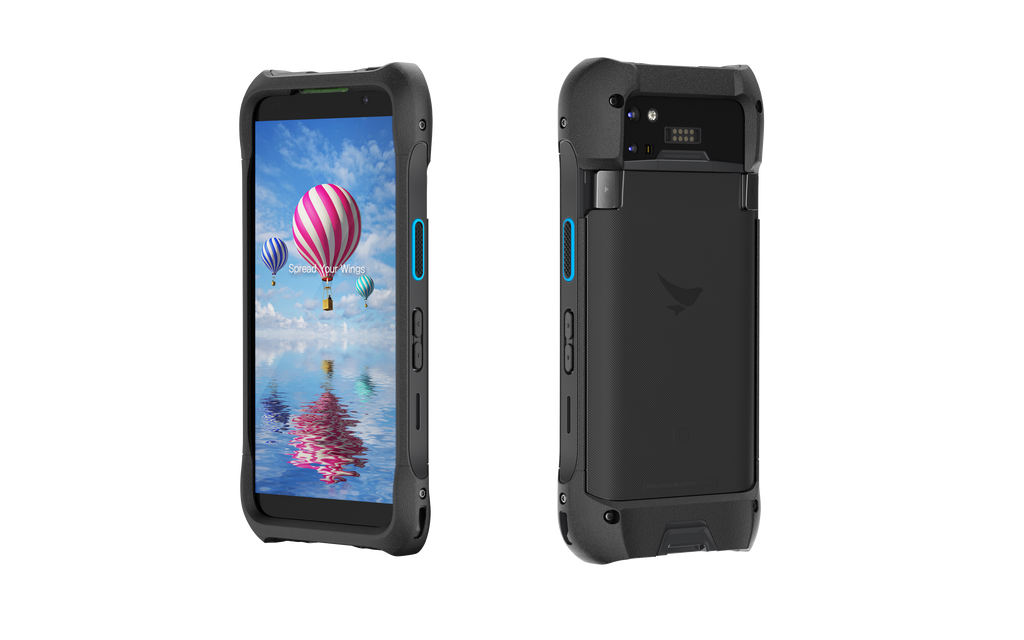

BlueBird S70 Explosion Protection Mobile Computer – ATEX/IECEx Zone 2/22, 5G
The BlueBird S70 Explosion Protection is an ultra-rugged 5G Android mobile computer certified to ATEX, IECEx and UKEX for Zone 2/22 potentially explosive atmospheres. It is aimed at industrial manufacturing, utilities and oil and gas operations that need a capable handheld in hazardous areas. A Qualcomm Snapdragon QC6490 processor, 6-inch FHD+ display and 3.05 m / 10 ft drop rating come in a 340 g device.
Key features
- Certified for hazardous locations under ATEX, IECEx and UKEX (Zone 2/22), with IP64 dust protection in the gas and dust markings.
- Survives multiple 3.05 m / 10 ft drops to concrete and 2,000 tumbles from 1.0 m / 3.3 ft.
- 5G and Wi-Fi 6E with CBRS private LTE support for large plants and sites.
- SE4770 standard engine reads from up to 60 cm / 24 in, with SE4720 and SE55 advanced-range options.
- 5,000 mAh or 7,000 mAh batteries with fast charging and hot swap on all SKUs; optional BLE beacon or Qi wireless-charging batteries.
- Gorilla Glass on the touch panel and imager; the sunlight-readable screen works with gloves and stylus.
- 16 MP autofocus camera, optional ToF sensor, and BOS PTT push-to-talk over Wi-Fi.
Specifications
| Explosion protection | ATEX: II 3G Ex ic op is IIC T5 Gc / II 3D Ex ic op is IIIC T100°C Dc IP64; IECEx: Ex ic op is IIC T5 Gc / Ex ic op is IIIC T100 °C Dc IP64; UKEX: as ATEX |
|---|---|
| CPU | Qualcomm Snapdragon QC6490 octa-core, 2.7 GHz |
| OS | Android 12, upgradeable to Android 16 |
| Memory | 6GB RAM / 64GB UFS Flash; 8GB RAM / 128GB UFS Flash (optional) |
| Display | 6" FHD+ (1080 x 2160), LED backlight, 600 nits |
| Connectivity | 5G, Wi-Fi 6E |
| Scanner | SE4770 1D/2D standard; SE4720 or SE55 (options) |
| Battery | Li-Polymer, 5000 mAh / 19.25 Wh standard; 7000 mAh / 26.95 Wh extended; fast charging and hot swap |
| Drop | Multiple 3.05 m / 10 ft drops to concrete at room temperature; 2.4 m / 8 ft over -20 °C to 50 °C (MIL-STD-810H) |
| Tumble | 2,000 x 1.0 m / 3.3 ft |
| Dimensions | 174 x 86.3 x 26 mm |
| Weight | 340 g |
Ideal for
Oil and gas, utilities, chemical and industrial manufacturing sites with Zone 2/22 hazardous areas, covering inspections, maintenance work orders, asset management and inventory where a standard handheld is not permitted.
Infinite Solutions is an authorized BlueBird partner. We supply BlueBird devices with configuration, MDM/BOS setup, accessories and support, and we welcome enquiries from India as well as international projects. Call/WhatsApp +91 93110 11467 or send an enquiry. See the full BlueBird range.
