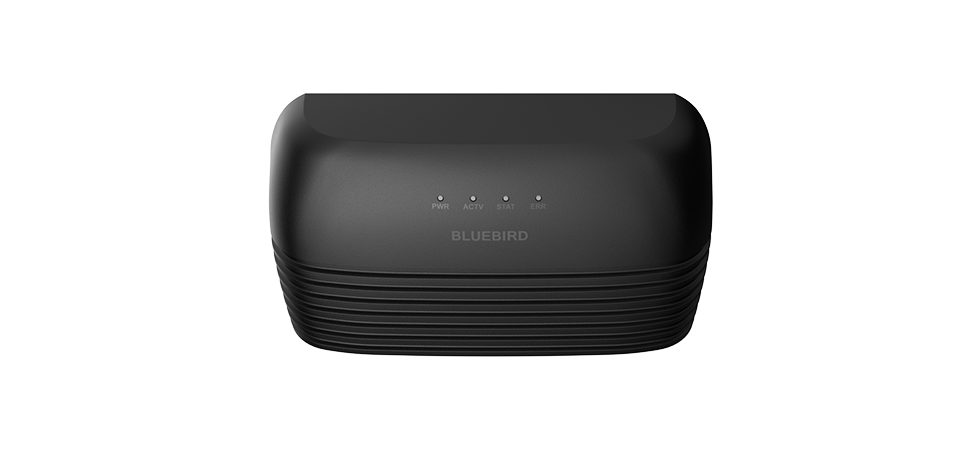

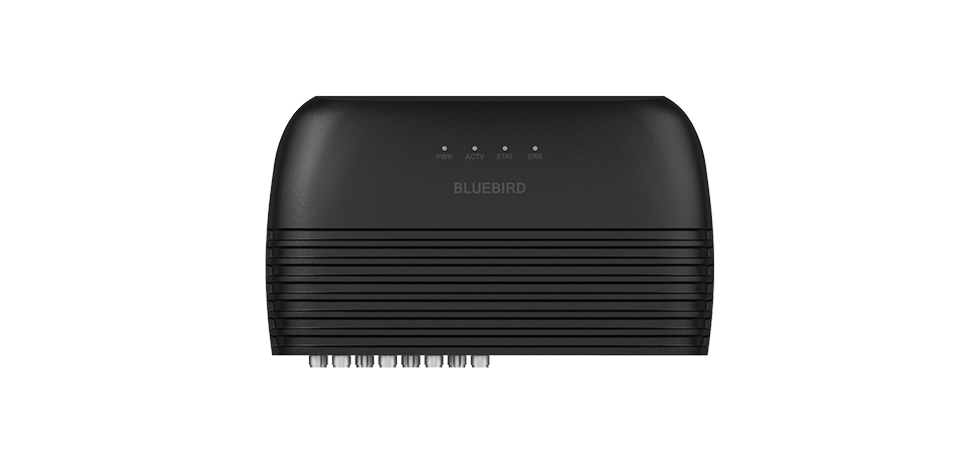

BlueBird FR901 Fixed UHF RFID Reader – 8 Antenna Ports, PoE+, Up to 33 dBm, IP53
The BlueBird FR901 is a fixed UHF RFID reader for permanent read points such as dock doors, portals and shelving. It serves retail, logistics, transport and fleet operations that need automated, hands-free tag capture. A single unit drives up to eight RFID antennas and supports transmit power up to 33 dBm.
Key features
- Scales with your site: connect up to 8 RFID antennas and 2 Wi-Fi antennas to one reader for cost-effective modular layouts.
- Tunable coverage: transmit power adjustable up to 33 dBm (region and power-source dependent) to size each read zone.
- Reliable in difficult spaces: Dense Reader Mode helps maintain accuracy around metal and liquids.
- Simpler installation: PoE+ carries power and network over one cable, with a power adapter option as well.
- Protected housing: IP53 sealing for industrial and back-of-house mounting.
- Multi-region bands: configurations for US, EU and Japan UHF frequency plans.
Specifications
| Dimensions | 253 x 160 x 58.5 mm (9.96 x 6.30 x 2.30 in) |
|---|---|
| Weight | 1.3 kg / 2.9 lb |
| Sealing | IP53 |
| Antenna ports | Up to 8 RFID antennas + 2 Wi-Fi antennas |
| Power | PoE+ or power adapter |
| Frequency (UHF) | US: 902–928 MHz; EU: 865–868 MHz and 916.3 / 917.5 / 918.7 MHz; Japan: 916–921 MHz (with LBT) |
| Transmit power, power adapter | US 5–30 dBm; EU 5–33 dBm; Japan 5–30 dBm |
| Transmit power, PoE | US 5–30 dBm; EU 5–31.5 dBm; Japan 5–30 dBm |
| Return loss (min) | 10 dB |
Ideal for
Retail stores and distribution centres, logistics and 3PL dock doors, transport and fleet yards, manufacturing lines and any fixed read point where items, pallets or vehicles pass an antenna.
Infinite Solutions is an authorized BlueBird partner. We supply BlueBird devices with configuration, MDM/BOS setup, accessories and support, and enquiries from India and international projects are welcome. Call/WhatsApp +91 93110 11467 or send an enquiry. See the full BlueBird range.
